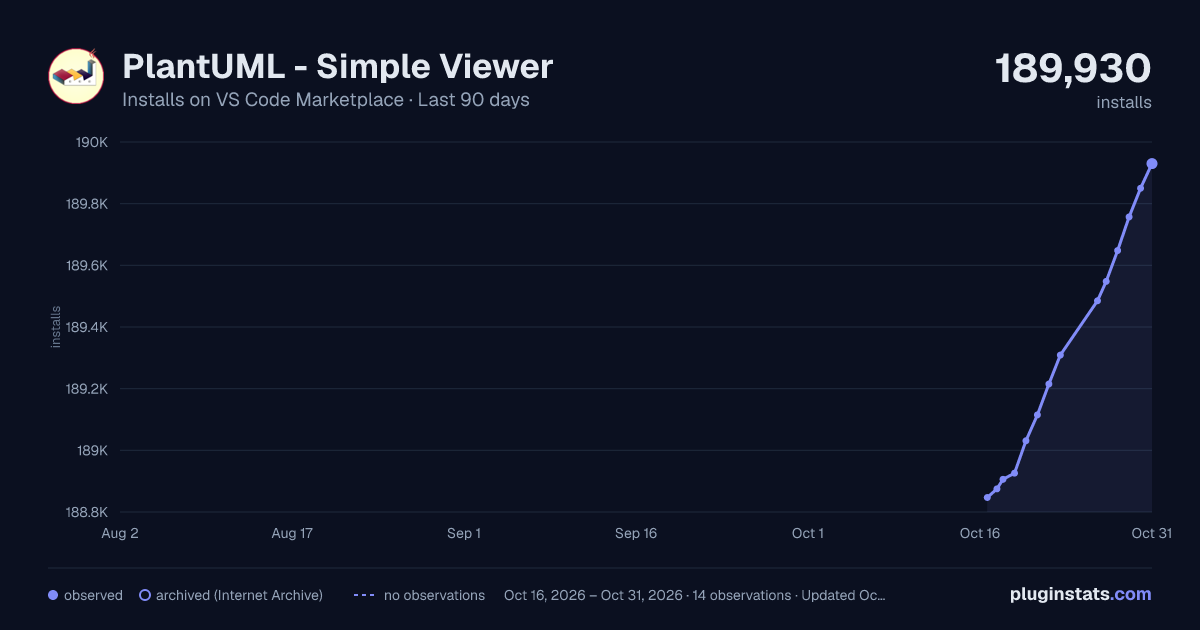

PlantUML - Simple Viewer installs statistics

PlantUML README

Fork

This fork contains a different viewer, with better rendering performance, and allows you to click on diagram texts to focus the position on current editor window.

---

Rich PlantUML support for Visual Studio Code.

<!-- [Donate by Paypal](https://paypal.me/qjebbs "If you like this plugin, you can buy me a coffee. Feel free if you don't want to, since it's free!") | [Donate by AliPay](https://github.com/qjebbs/vscode-plantuml/blob/master/images/alipay.png?raw=true) | [PlantUML Document](http://plantuml.com/sitemap-language-specification) -->

Notice

The server render is now very recommended by this extension, since it's much faster and much easier to setup, while the major weakness has been improved:

• Enables POST method, you can now render very-large diagrams
• The extension comes with a new include processor, you won't encounter include problems again.

To make sure you can benifit from this update, make sure your plantuml server enables POST support.

If not, like the official https://www.plantuml.com/plantuml, the extension falls back to use GET, and you may still encounter 414 URI Too Long errors. Setup your own server is recommended.

See also: About Render

Features

• Preview Diagram, Press <kbd>Alt</kbd> + <kbd>D</kbd> to start PlantUML preview (<kbd>option</kbd> + <kbd>D</kbd> on MacOS).
  • Auto update.
  • Zoom & scroll support.
  • Multi-Page Diagram support.
  • Instant preview, if diagram's been exported.
  • From local or server.
  • Snap to Border
• Export Diagrams
  • At cursor, in current file, in whole workspace, in workspace selected.
  • Concurrent export.
  • Generate URLs.
  • Multi-Page Diagram support.
  • From local or server.
  • Image map (cmapx) support.
• Editing Supports
  • Format PlantUML code. (Deprecated)
  • All type syntax highlight.
  • All type snippets.
  • Basic auto completion & macro signature support
  • Symbol List support.
• Others
  • Multi-root Workspace Support.
  • MarkDown integrating support. View Demo
  • Extracting source from images support.

Notice: If you use customize plantuml.jar, please update to the latest version to enable Multi-Page Diagram support. (Later than V1.2017.15)

Format PlantUML code is Deprecated. Don't depend on it, use it only when it works right. I had force disable it in auto-format cases (format on save).

Supported Formats

*.wsd, *.pu, *.puml, *.plantuml, *.iuml

How to install

Launch VS Code Quick Open (Ctrl+P), paste the following command, and press enter.

ext install plantuml

Requirements

Depend on which render you choose, plugin has diffrerent requirements.

Requirements for PlantUMLServer render

A plantuml server. See Use PlantUML Server as render.

Requirements for Local render

It's necessary to have following installed:

• Java : Platform for PlantUML running.
• Graphviz : PlantUML requires it to calculate positions in diagram.

Quick Install for Mac

brew install --cask temurin
brew install graphviz

Quick Install for Windows

The plugin has an integrated copy of plantuml.jar and GraphViz, so you are normally good to go. But if you want to use your own jar or a different version of GraphViz (maybe a newer version, or with many dependent jars):

• download the latest plantuml.jar or install it using chocolatey (see below).
• specify the jar location with the extension setting plantuml.jar.
• specify the GraphViz installation by defining the Windows environment variable GRAPHVIZ_DOT, e.g., c:\program files\graphviz\bin\dot.exe if you installed plantuml with chocolatey, which automatically installs the latest GraphViz as a dependency.

Choco install

For windows users, majkinetor introduced a way to install plantuml and its dependencies easily. Run cmd.exe as Administrator, and run two commands as follows (the first command is not needed and will fail if you already have chocolatey installed).

@"%SystemRoot%\System32\WindowsPowerShell\v1.0\powershell.exe" -NoProfile -ExecutionPolicy Bypass -Command "iex ((New-Object System.Net.WebClient).DownloadString('https://chocolatey.org/install.ps1'))" && SET "PATH=%PATH%;%ALLUSERSPROFILE%\chocolatey\bin"

choco install plantuml

If you've installed java, but still prompts "java not installed", please add java bin path to PATH environment variable.

Typical Files Organization

• Default extension settings works for independent Plantuml projects.
• If Plantuml files are only part of your project (as documetation), use plantuml.diagramsRoot and plantuml.exportOutDir to setting up the organization, for example:

"plantuml.diagramsRoot": "docs/diagrams/src",
"plantuml.exportOutDir": "docs/diagrams/out"

You'll get export results like:

Project Folder/
  docs/
    diagrams/
      src/
        architecture_overview.wsd
      out/
        architecture_overview/
  ...rest_of_your_project_folders/
  ...rest_of_your_project_files

Include Files Search Logic

Latest version has changed the include files search logic once again. It is possible to configure includepaths now in settings.json.

The new search order is as follows:

1. The folder of the rendered file
2. The includepaths as configured in settings.json

"plantuml.includepaths": ["docs/diagrams/style","docs/diagrams/src"],

1. The diagramsRoot…
