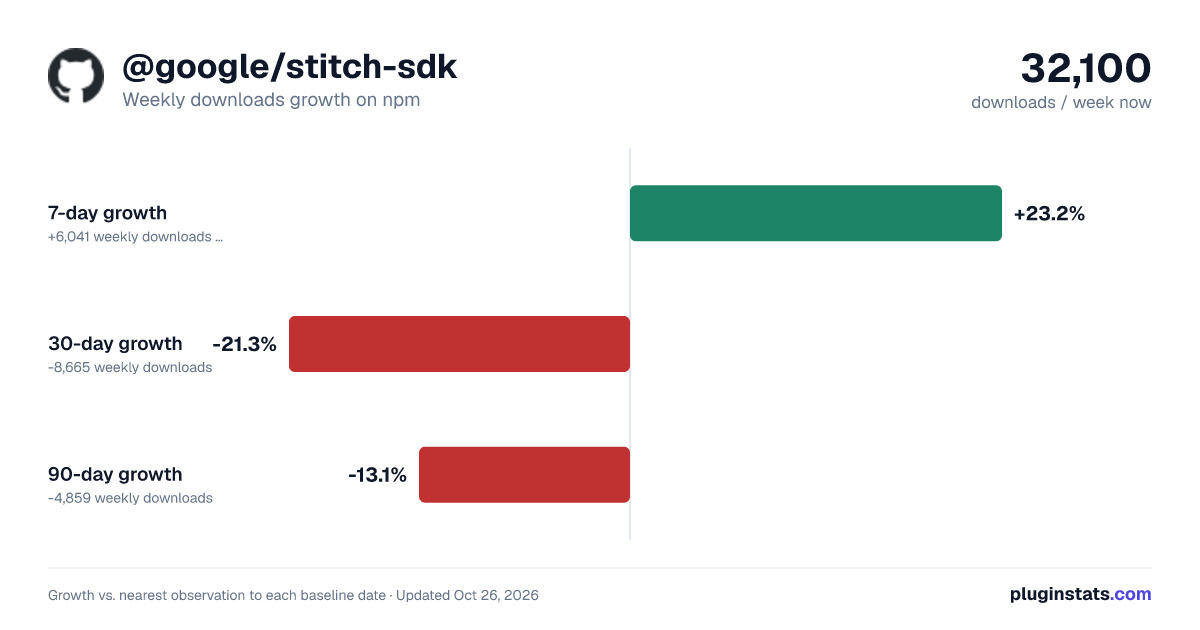

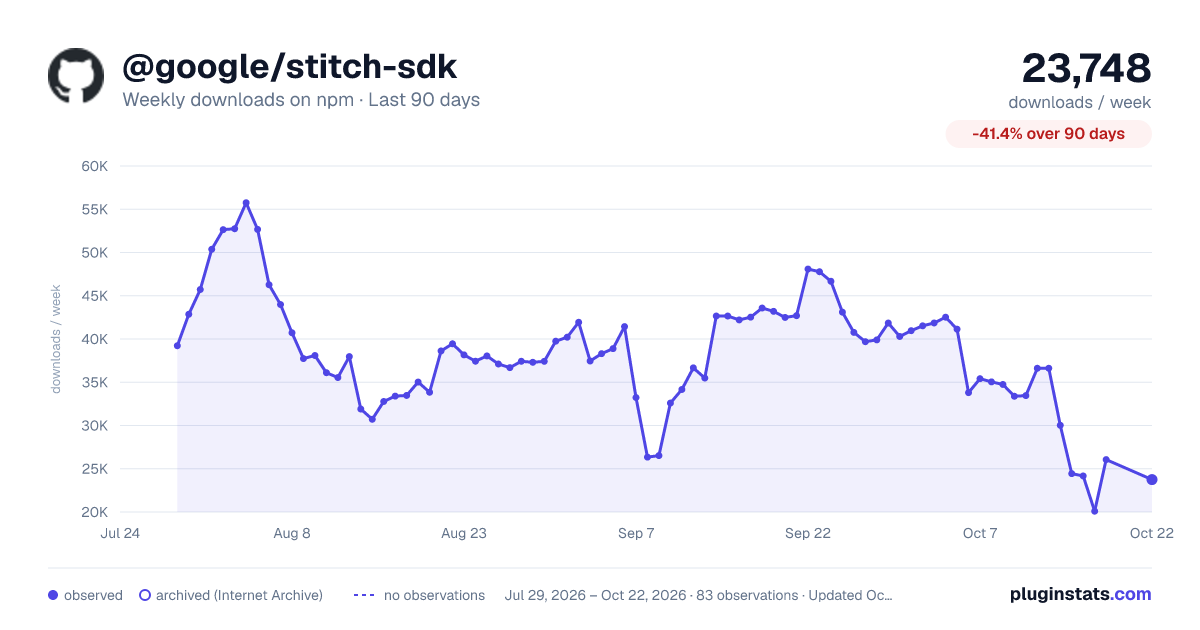

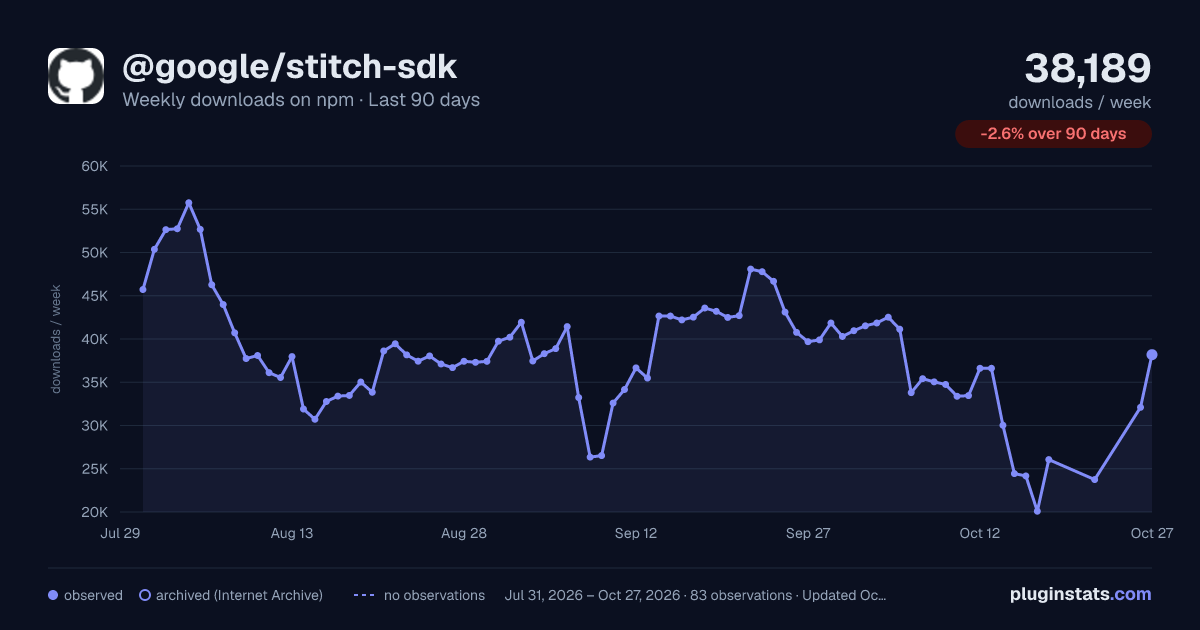

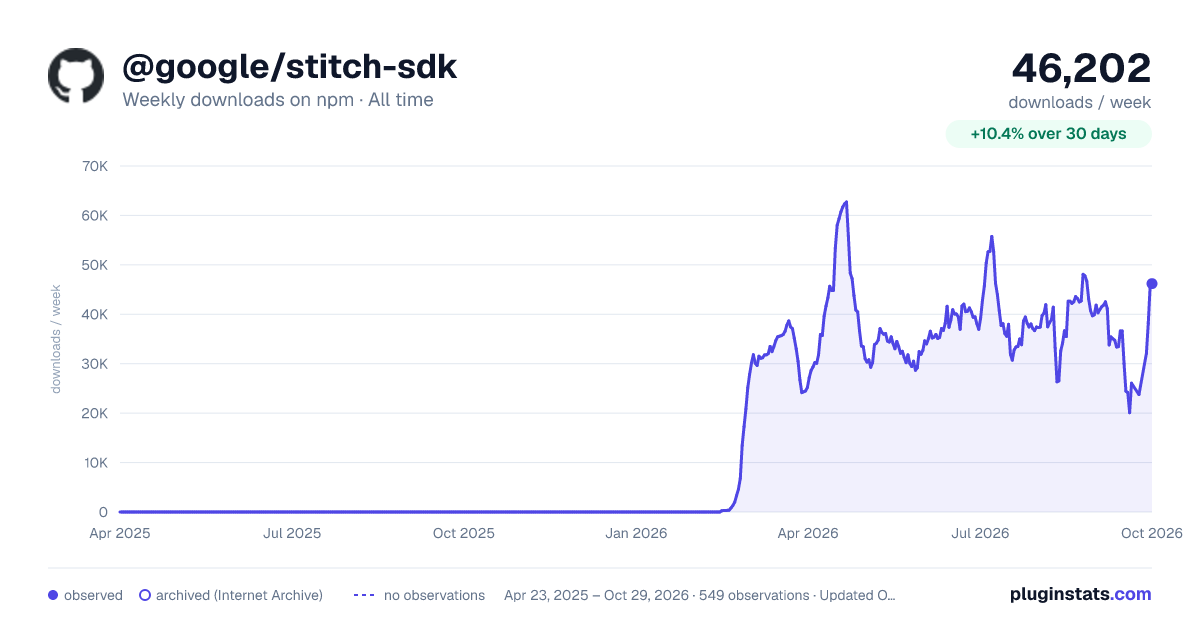

@google/stitch-sdk weekly downloads statistics

@google/stitch-sdk

Generate UI screens from text prompts and extract their HTML and screenshots programmatically.

Quick Start

Set your API key and generate a screen:

html is a download URL for the screen's HTML. imageUrl is a download URL for the screenshot.

Install

To use stitchTools() with the Vercel AI SDK, install ai as well:

Working with Projects and Screens

List existing projects

Reference a project by ID

If you already have a project ID, reference it directly:

Edit a screen

Generate variants

variantOptions fields:

| Field | Type | Default | Description |

| variantCount | number | 3 | Number of variants (1–5) | | creativeRange | string | "EXPLORE" | "REFINE", "EXPLORE", or "REIMAGINE" | | aspects | string[] | all | "LAYOUT", "COLOR_SCHEME", "IMAGES", "TEXT_FONT", "TEXT_CONTENT" |

Tool Client (Agent Usage)

For agents and orchestration scripts that need direct MCP tool access:

The client auto-connects on the first callTool or listTools call. No explicit connect() needed. All tool responses and input parameters are strictly typed and exported from the SDK.

API Reference

Stitch

The root class. Manages projects.

| Method | Parameters | Returns | Description |

| createProject(title) | title: string | Promise | Create a new project | | projects() | — | Promise | List all accessible projects | | project(id) | id: string | Project | Reference a project by ID (no API call) |

Project

A Stitch project containing screens.

| Property | Type | Description |

| id | string | Alias for projectId | | projectId | string | Bare project ID (no projects/ prefix) |

| Method | Parameters | Returns | Description |

| generate(prompt, deviceType?) | prompt: string, deviceType?: DeviceType | Promise | Generate a screen from a text prompt | | screens() | — | Promise | List all screens in the project | | getScreen(screenId) | screenId: string | Promise | Retrieve a specific screen by ID |

DeviceType: "MOBILE" \| "DESKTOP" \| "TABLET" \| "AGNOSTIC"

Screen

A generated UI screen. Provides access to HTML and screenshots.

| Property | Type | Description |

| id | string | Alias for screenId | | screenId | string | Bare screen ID | | projectId | string | Parent project ID |

| Method | Parameters | Returns | Description |

| edit(prompt, deviceType?, modelId?) | prompt: string | Promise | Edit the screen with a text prompt | | variants(prompt, variantOptions, deviceType?, modelId?) | prompt: string, variantOptions: object | Promise | Generate design variants | | getHtml() | — | Promise | Get the screen's HTML download URL | | getImage() | — | Promise | Get the screen's screenshot download URL |

getHtml() and getImage() use cached data from the generation response when available. If the screen was loaded from screens() or getScreen(), they call the get_screen API automatically.

modelId: "GEMINI_3_PRO" \| "GEMINI_3_FLASH"

StitchToolClient

Low-level authenticated pipe to the Stitch MCP server. Use this when you need direct tool access (e.g., in an AI agent).

| Method | Parameters | Returns | Description |

| callTool(name, args) | name: string, args: Record | Promise | Call an MCP tool | | listTools() | — | Promise | List available tools | | connect() | — | Promise | Explicitly connect (auto-called by callTool) | | close() | — | Promise | Close the connection |

StitchProxy

An MCP proxy server that forwards requests to Stitch. Use this to expose Stitch tools through your own MCP server.

stitch Singleton

A pre-configured Stitch instance that reads STITCH_API_KEY from the environment. Lazily initialized on first use.

toolMap

Static tool schemas with pre-parsed parameters. Available on stitch.toolMap or as a standalone export. No network call or API key needed.

Each ToolParam has: name, type, description, required, and enum (for constrained values).

The raw inputSchema (ToolInputSchema) is also available on each entry. Standalone exports: toolMap, toolDefinitions, ToolInfo, ToolParam, ToolDefinition, ToolInputSchema, ToolPropertySchema.

Configuration

Environment Variables

| Variable | Required | Description |

| STITCH_API_KEY | Yes (or use OAuth) | API key for authentication | | STITCH_ACCESS_TOKEN | No | OAuth access token (alternative to API key) | | GOOGLE_CLOUD_PROJECT | With OAuth | Google Cloud project ID | | STITCH_HOST | No | Override the MCP server URL |

Explicit Configuration

| Option | Type | Default | Description |

| apiKey | string | STITCH_API_KEY | API key | | accessToken | string | STITCH_ACCESS_TOKEN | OAuth token | | projectId | string | GOOGLE_CLOUD_PROJECT | Cloud project ID | | baseUrl | string | https://stitch.googleapis.com/mcp | MCP server URL | | timeout | number | 300000 | Request timeout (ms) |

Authentication requires either apiKey or both accessToken and projectId.

Error Handling

All domain class methods throw StitchError on failure:

Error codes: AUTH_FAILED, NOT_FOUND, PERMISSION_DENIED, RATE_LIMITED, NETWORK_ERROR, VALIDATION_ERROR, UNKNOWN_ERROR.

Disclaimer

This is not an officially supported Google product. This project is not eligible for the Google Open Source Software Vulnerability Rewards Program.

License

Apache 2.0 — see LICENSE for details.
