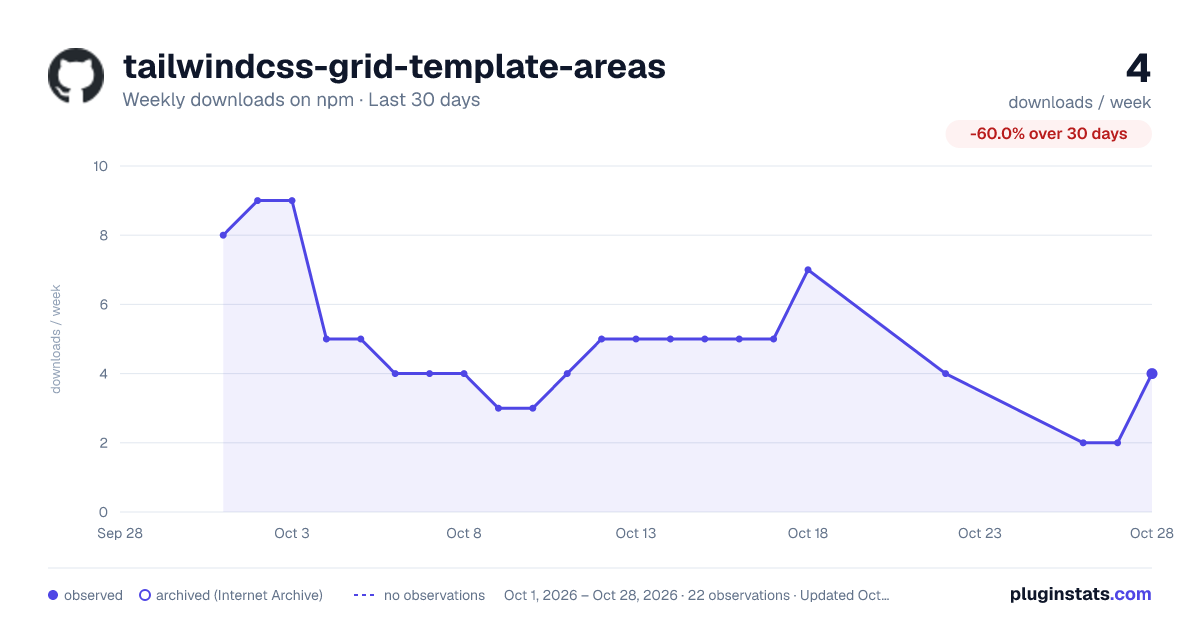

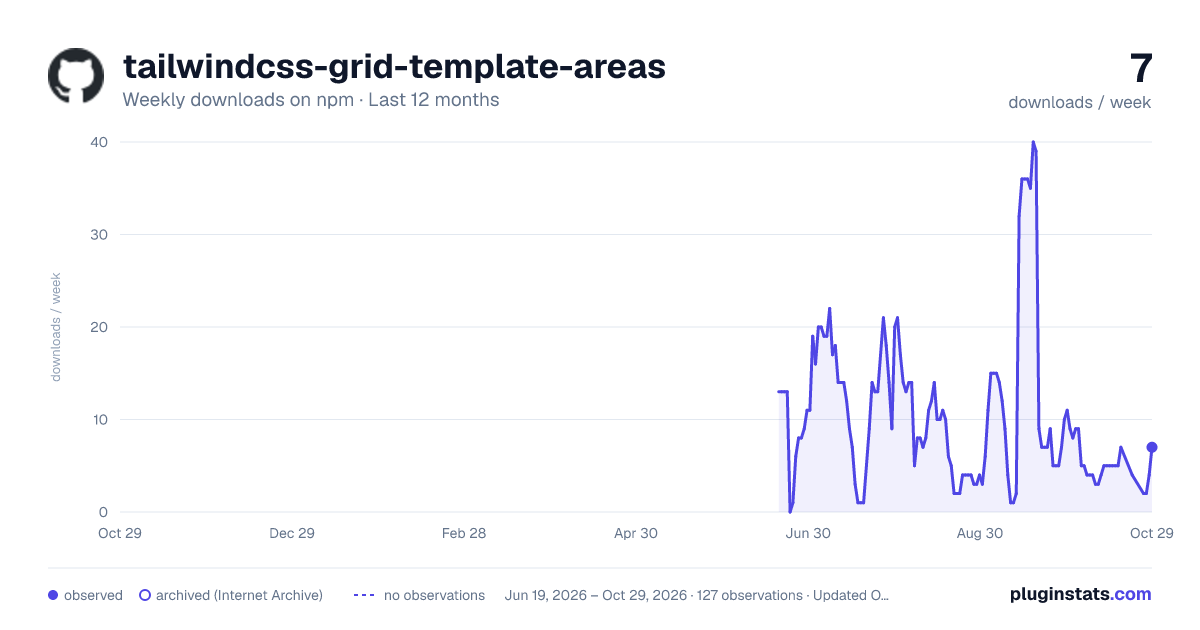

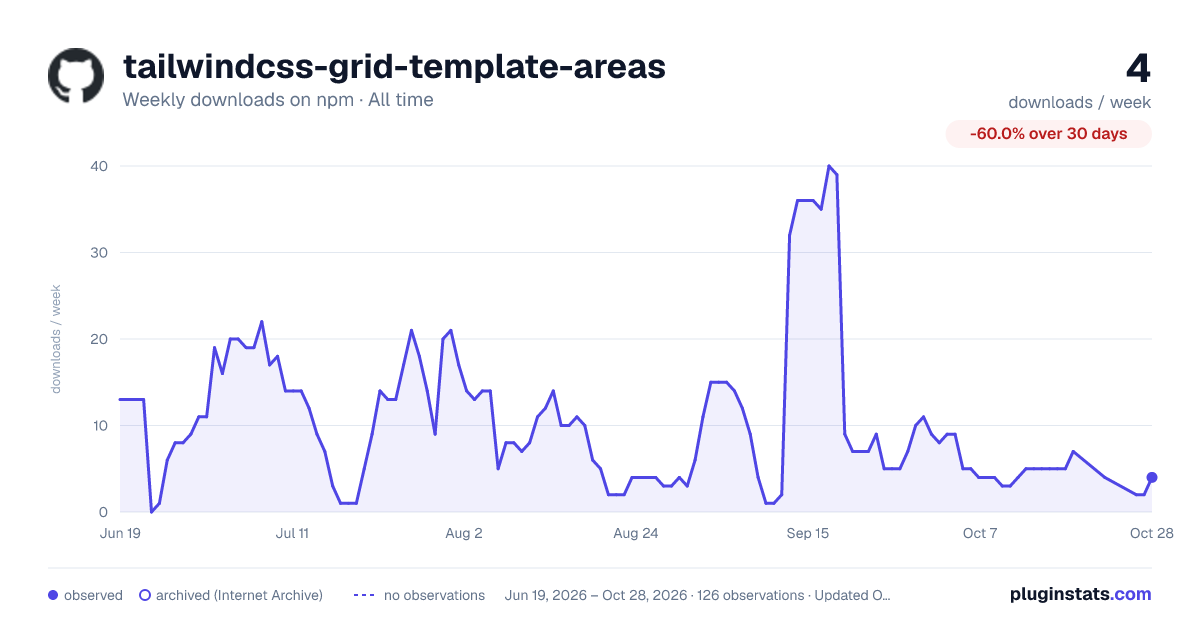

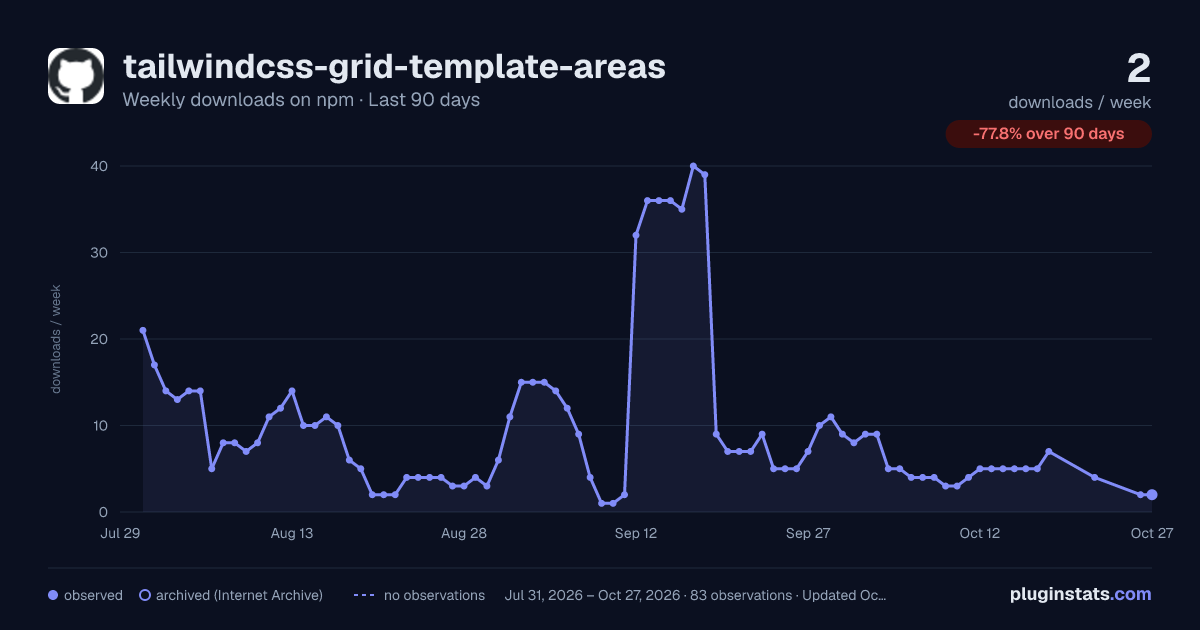

tailwindcss-grid-template-areas weekly downloads statistics

tailwindcss-grid-template-areas

A powerful Tailwind CSS v4 plugin for CSS Grid template areas with intuitive row/column separators.

Features

• 🎯 Simple Syntax: Only grid-areas-[] pattern with clear separators
• ⚡ Intuitive Separators: Pipe (|) for rows, comma (,) for columns
• 🔧 Underscore Freedom: Use underscores and hyphens freely in area names
• 📍 Grid Area Placement: grid-in-[] utilities for arbitrary area assignment
• ⚡ Tailwind CSS v4 Compatible: Built for the latest Tailwind CSS v4
• 🚀 Zero Configuration: Works out of the box with simple installation

Installation

npm install tailwindcss-grid-template-areas

Usage

Method 1: Production Build (Recommended)

Add the plugin to your main CSS file:

@import 'tailwindcss';
@plugin 'tailwindcss-grid-template-areas/plugin.js';

Method 2: Browser CDN

<script src="https://cdn.jsdelivr.net/npm/@tailwindcss/browser@4"></script>
<script>
  tailwind.config = {
    plugins: [
      function({ matchUtilities }) {
        const normalizeValue = (value) => {
          return value.replace(/\\\|/g, '|').replace(/ /g, '_')
        }

        matchUtilities({
          'grid-areas': (value) => {
            const normalizedValue = normalizeValue(value)

            // Pipe for rows, comma for columns
            if (normalizedValue.includes('|')) {
              const rows = normalizedValue.split('|').map(row => {
                const columns = row.split(',')
                return `"${columns.join(' ')}"`
              })
              return { 'grid-template-areas': rows.join(' ') }
            }
            // Single row handling
            if (normalizedValue.includes(',')) {
              const columns = normalizedValue.split(',')
              return { 'grid-template-areas': `"${columns.join(' ')}"` }
            }
            return { 'grid-template-areas': `"${normalizedValue}"` }
          }
        })
        matchUtilities({
          'grid-in': (value) => ({ 'grid-area': normalizeValue(value) })
        })
      }
    ]
  }
</script>

Syntax Guide

Core Rules

• Pipe (|): Separates rows
• Comma (,): Separates columns within a row
• Underscore (_): Allowed in area names
• Hyphen (-): Allowed in area names

Patterns

Single Row Layout

<div class="grid grid-areas-[main,sidebar]">
  <main class="grid-in-[main]">Main Content</main>
  <aside class="grid-in-[sidebar]">Sidebar</aside>
</div>

Generates: grid-template-areas: "main sidebar"

Multi-Row Layout

<div class="grid grid-areas-[nav,nav,nav|sidebar,main,ads|footer,footer,footer]">
  <nav class="grid-in-[nav]">Navigation</nav>
  <aside class="grid-in-[sidebar]">Sidebar</aside>
  <main class="grid-in-[main]">Main Content</main>
  <div class="grid-in-[ads]">Advertisements</div>
  <footer class="grid-in-[footer]">Footer</footer>
</div>

Generates:

grid-template-areas:
  "nav nav nav"
  "sidebar main ads"
  "footer footer footer";

Hero Layout

<div class="grid grid-areas-[hero-image,title|hero-image,content|hero-image,cta]">
  <div class="grid-in-[hero-image]">Hero Image</div>
  <h1 class="grid-in-[title]">Amazing Title</h1>
  <p class="grid-in-[content]">Great content here</p>
  <button class="grid-in-[cta]">Call to Action</button>
</div>

Complex Area Names

<div class="grid grid-areas-[hero_image,call-to-action]">
  <div class="grid-in-[hero_image]">Hero with underscore</div>
  <button class="grid-in-[call-to-action]">Button with hyphen</button>
</div>

Live Demo

🎨 View Live Demo - See all examples in action!

Why This Plugin?

Problem with Traditional Approach

/* Traditional CSS - verbose and hard to maintain */
.layout {
  grid-template-areas:
    "nav nav nav"
    "sidebar main ads"
    "footer footer footer";
}

Solution with Our Plugin

<!-- Simple, intuitive Tailwind utility -->
<div class="grid grid-areas-[nav,nav,nav|sidebar,main,ads|footer,footer,footer]">

Key Benefits

• Visual Structure: Pipes and commas mirror the actual grid layout
• No Configuration: Works immediately without theme setup
• Flexible Naming: Use underscores and hyphens naturally in area names
• Dynamic Usage: Perfect for JavaScript-driven layouts

Advanced Examples

Dynamic Grid with JavaScript

// Dynamically change grid areas
const areas = ['header', 'main_content', 'sidebar-ads', 'footer_area'];
const gridClass = `grid-areas-[${areas.join(',')}]`;
element.className = `grid ${gridClass}`;

// Dynamic area assignment
areas.forEach((area, index) => {
  const child = element.children[index];
  child.className = `grid-in-[${area}]`;
});

Responsive Layouts

<!-- Different layouts for different screen sizes -->
<div class="
  grid
  grid-areas-[main|sidebar]
  md:grid-areas-[main,sidebar]
  lg:grid-areas-[nav,nav,nav|main,sidebar,ads|footer,footer,footer]
">
  <!-- Grid items -->
</div>

Browser Support

• Modern Browsers: Chrome 57+, Firefox 52+, Safari 10.1+, Edge 16+
• CSS Grid Support: Required for grid-template-areas functionality
• Tailwind CSS v4: Compatible with the latest Tailwind CSS v4

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT © hansanghyeon
