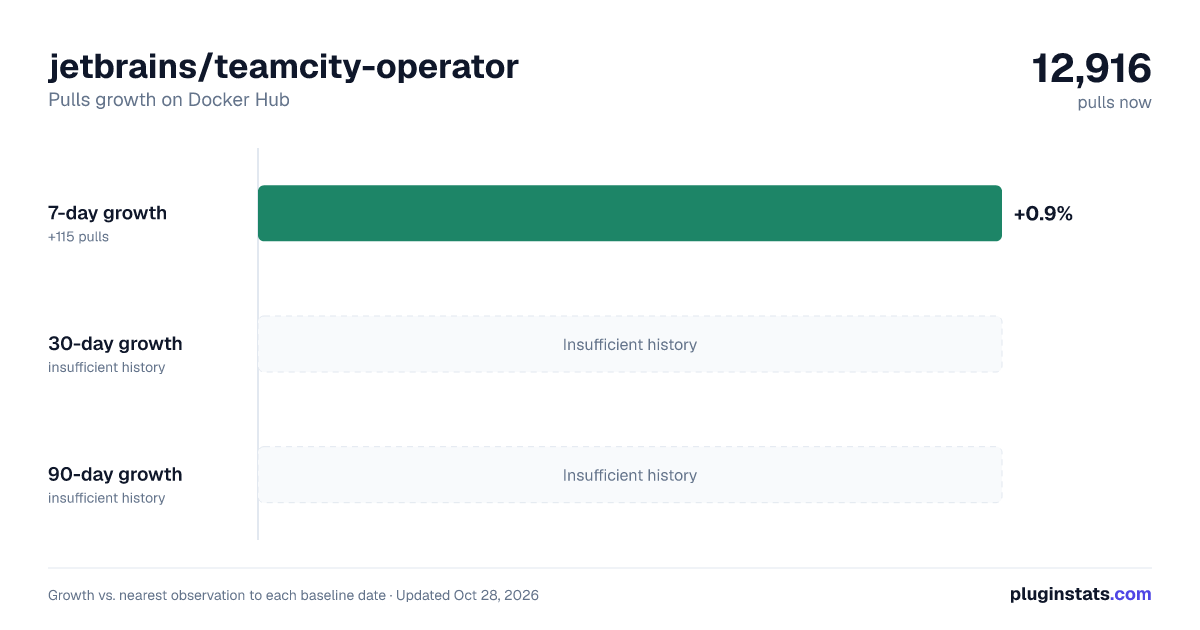

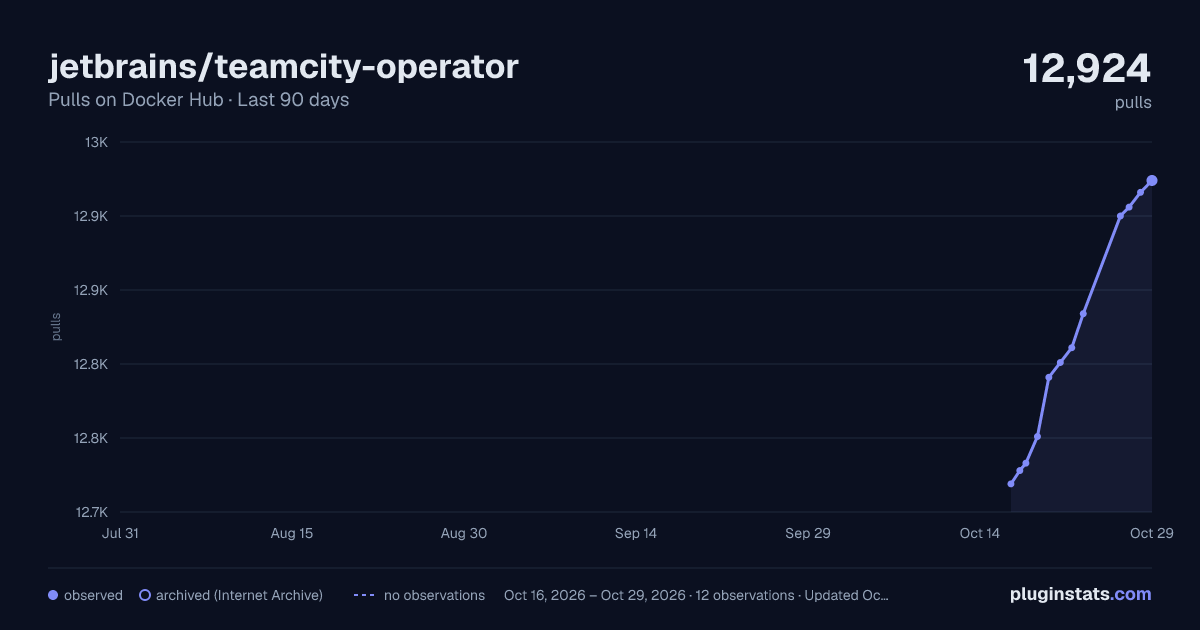

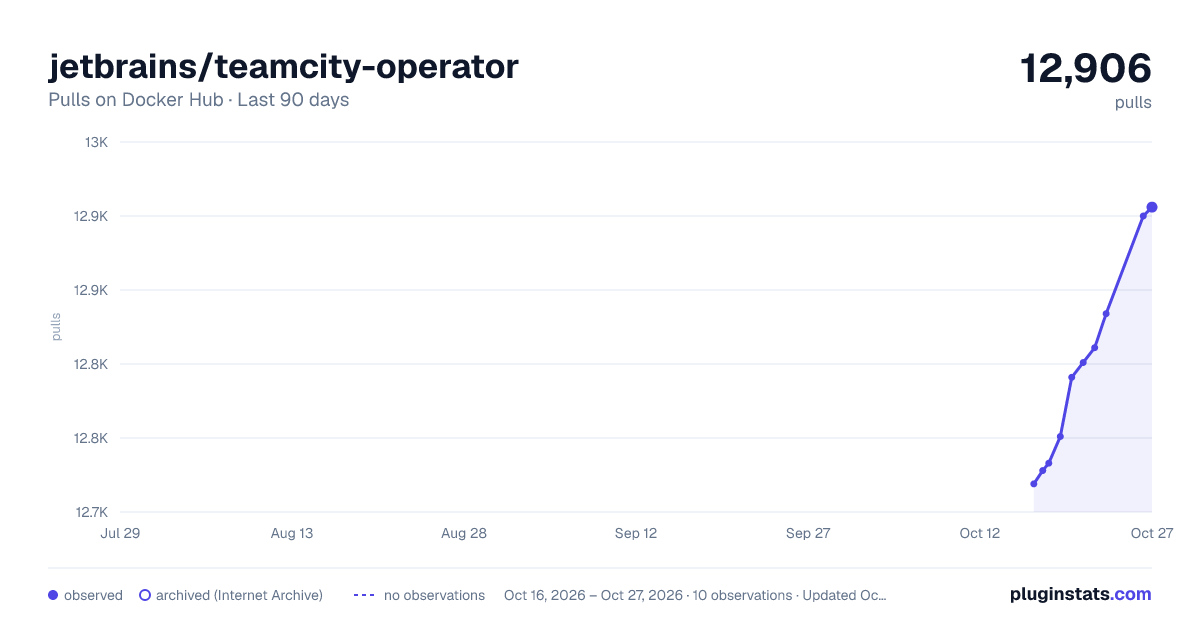

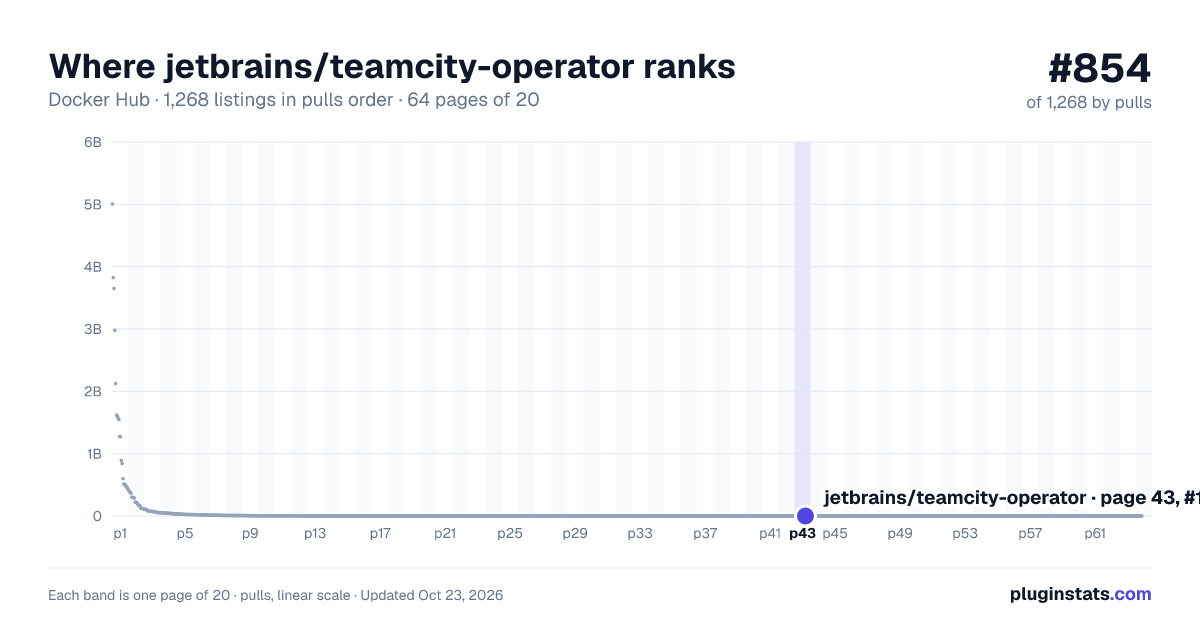

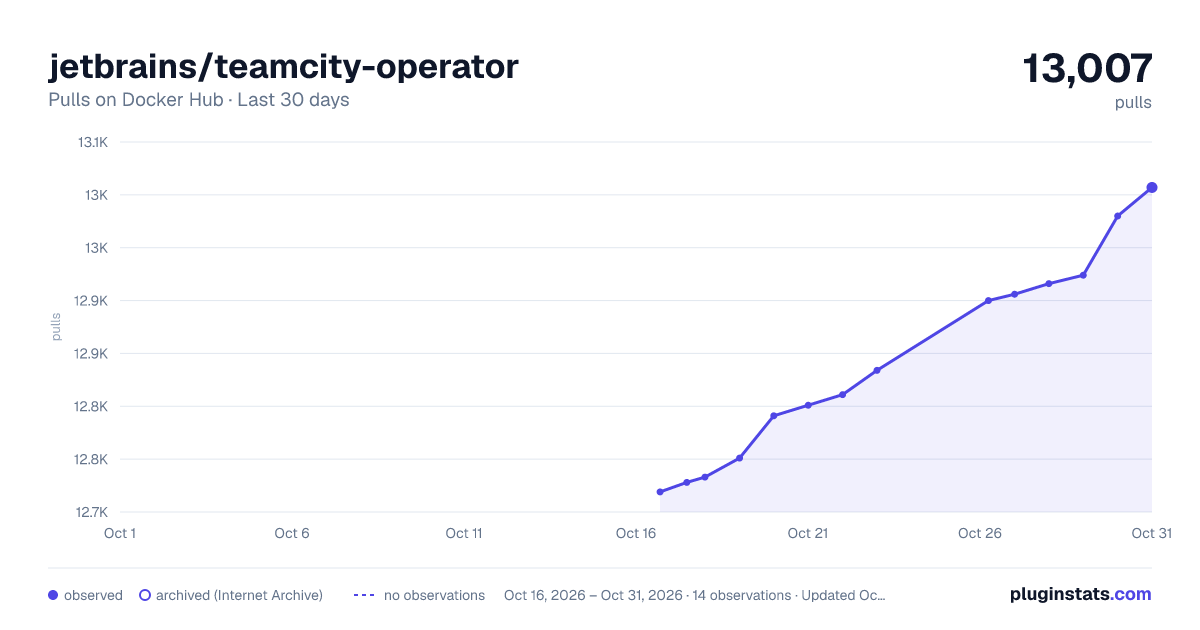

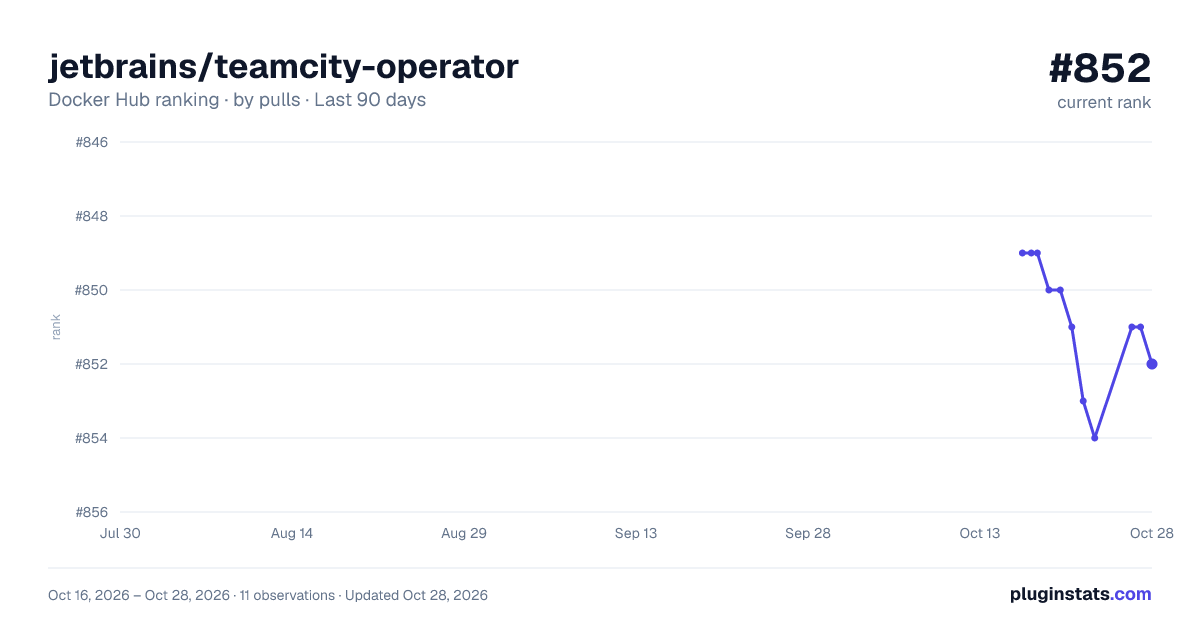

jetbrains/teamcity-operator pulls statistics

TeamCity Kubernetes Operator

TeamCity Operator is a Kubernetes operator that deploys and manages TeamCity servers using a Custom Resource Definition (CRD).

Installation

Prerequisites

• Kubernetes v1.26.0+
• cert-manager installed in the cluster
  • Tested with cert-manager v1.14.3
  • Install example:

    kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.14.3/cert-manager.yaml


Install the Operator via Helm

Install release 0.0.20 of the chart from GitHub Releases:

helm upgrade --install teamcity-operator \
  -n teamcity-operator --create-namespace \
  https://github.com/JetBrains/teamcity-operator/releases/download/0.0.20/teamcity-operator-0.0.20.tgz

Install from source

From the repository root of this project:

helm upgrade --install teamcity-operator \
  -n teamcity-operator --create-namespace \
  ./charts/teamcity-operator

Verify installation:

kubectl get pods -n teamcity-operator
kubectl get crd teamcities.jetbrains.com

Create a TeamCity server

After installing the operator, apply a TeamCity custom resource. Below are common configurations. You can find additional samples under config/samples/v1beta1.

Note: When setting CPU and memory requests/limits for nodes, consult the official TeamCity Server Requirements to estimate appropriate resources: https://www.jetbrains.com/help/teamcity/system-requirements.html#TeamCity+Server+Requirements.

Standalone TeamCity Main Node with a data directory

apiVersion: jetbrains.com/v1beta1
kind: TeamCity
metadata:
  name: teamcity
  namespace: default
  finalizers:
    - "teamcity.jetbrains.com/finalizer"
spec:
  image: jetbrains/teamcity-server
  mainNode:
    name: main-node
    spec:
      requests:
        cpu: "900m"
        memory: "1512Mi"
  dataDirVolumeClaim:
    name: teamcity-data-dir
    volumeMount:
      name: teamcity-data-dir
      mountPath: /storage
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 1Gi

Standalone TeamCity Main Node with a pre-configured external database

apiVersion: v1
data:
  connectionProperties.password: DB_PASSWORD
  connectionProperties.user: DB_USER
  connectionUrl: DB_CONNECTION_STRING # format jdbc:mysql://DB_HOST:DB_PORT/SCHEMA_NAME
kind: Secret
metadata:
  name: database-properties
---
apiVersion: jetbrains.com/v1beta1
kind: TeamCity
metadata:
  name: teamcity-with-database
  namespace: default
  finalizers:
    - "teamcity.jetbrains.com/finalizer"
spec:
  image: jetbrains/teamcity-server
  databaseSecret:
    secret: database-properties
  mainNode:
    name: main-node
    spec:
      env:
        AWS_DEFAULT_REGION: "eu-west-1"
      requests:
        cpu: "900m"
        memory: "1512Mi"
  dataDirVolumeClaim:
    name: teamcity-data-dir
    volumeMount:
      name: teamcity-data-dir
      mountPath: /storage
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 1Gi

Standalone TeamCity Main Node with startup properties

apiVersion: jetbrains.com/v1beta1
kind: TeamCity
metadata:
  name: teamcity-with-startup-properties
  namespace: default
  finalizers:
    - "teamcity.jetbrains.com/finalizer"
spec:
  image: jetbrains/teamcity-server
  startupPropertiesConfig:
    teamcity.startup.maintenance: "false"
    teamcity.firstStart.setupAdmin.enabled: "false"
  mainNode:
    name: main-node
    spec:
      requests:
        cpu: "900m"
        memory: "1512Mi"
  dataDirVolumeClaim:
    name: teamcity-data-dir
    volumeMount:
      name: teamcity-data-dir
      mountPath: /storage
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 1Gi

Standalone TeamCity Main Node with Ingress and Service

apiVersion: jetbrains.com/v1beta1
kind: TeamCity
metadata:
  name: teamcity-sample-with-ingress
  namespace: default
  finalizers:
    - "teamcity.jetbrains.com/finalizer"
spec:
  image: jetbrains/teamcity-server
  mainNode:
    name: main-node
    spec:
      requests:
        cpu: "900m"
        memory: "1512Mi"
  dataDirVolumeClaim:
    name: teamcity-data-dir
    volumeMount:
      name: teamcity-data-dir
      mountPath: /storage
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 1Gi
  serviceList:
    - name: main-node
      spec:
        selector:
          app.kubernetes.io/name: teamcity-sample-with-ingress
          app.kubernetes.io/component: teamcity-server
          app.kubernetes.io/part-of: teamcity
        ports:
          - protocol: TCP
            port: 8111
            targetPort: 8111
        clusterIP: None
  ingressList:
  - name: teamcity-sample-with-ingress
    annotations:
      nginx.ingress.kubernetes.io/proxy-read-timeout: "3600"
      nginx.ingress.kubernetes.io/proxy-send-timeout: "3600"
      nginx.ingress.kubernetes.io/server-snippets: |
        location / {
          proxy_http_version 1.1;
          proxy_set_header X-Forwarded-Host $http_host;
          proxy_set_header X-Forwarded-Proto $scheme;
          proxy_set_header X-Forwarded-For $remote_addr;
          proxy_set_header Host $host;
          proxy_set_header Upgrade $http_upgrade; # WebSocket support
          proxy_set_header Connection "upgrade"; # WebSocket support
        }
    spec:
      ingressClassName: nginx
      rules:
        - host: teamcity.mycompany.com
          http:
            paths:
              - backend:
                  service:
                    name: main-node
                    port:
                      number: 8111
                pathType: ImplementationSpecific

Standalone TeamCity Main Node with a ServiceAccount…
